316 316L rope cable wire net stainless steel wire rope mesh net zoo mesh
1. Stainless Steel Wire Rope Mesh Description
1) Stainless steel mesh used for anti-hill mesh, aviary mesh, zoo fencing, farm fencing and other security mesh, with stainless steel material and feature of rust-proof, strongest, and durability.
2) There are two types, one is woven types of steel cable mesh, the other is ferrule types of the steel cable mesh.
The woven types of steel cable mesh mateiral:stainless steel 304, 304L,316,316L.The structure of the steel calbe wire have 7x7 and 7x19. The steel cable wire diameter icludes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".
3) The ferrule types of steel cable mesh material: stainless steel 304, 304L,316,316L.The structure of the steel cable wire has 7x7 and 7x19. The steel cable wire diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
4) Rope material: high-quality stainless steel 304, 316, 304L, and 316L.
Rope diameter: 1.2mm to 3.2mm and other rope diameters are also available.
Rope construction: 7 × 7 and 7 × 19 are the main user, and 1 × 7 and 1 × 19 are also supplied.
2. Stainless Steel Wire Rope Mesh Specification
| able diameter | Mesh opening size | Nominal break |
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |

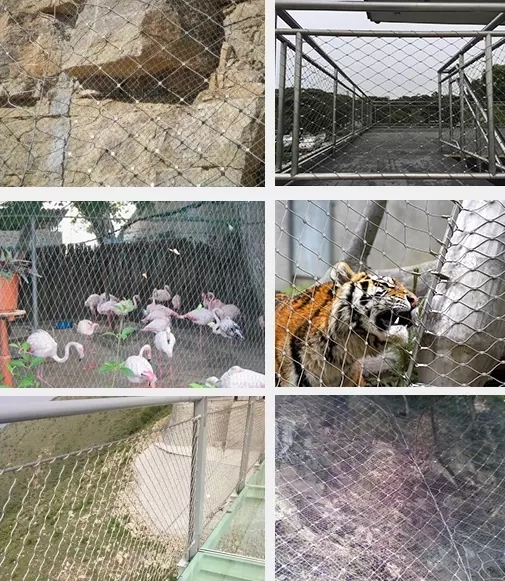

3. Stainless Steel Wire Rope Mesh Application
1) Zoos, safari parks, marine parks, and other similar environments.
2) Animal cages, bird nets, animal fences, and garden decorations and construction and renovation.
3) Stainless steel rope mesh is also suitable for playgrounds, gymnasiums, acrobatics, home decoration, architectural decoration, and many other fields.
Product Tags:
|
|

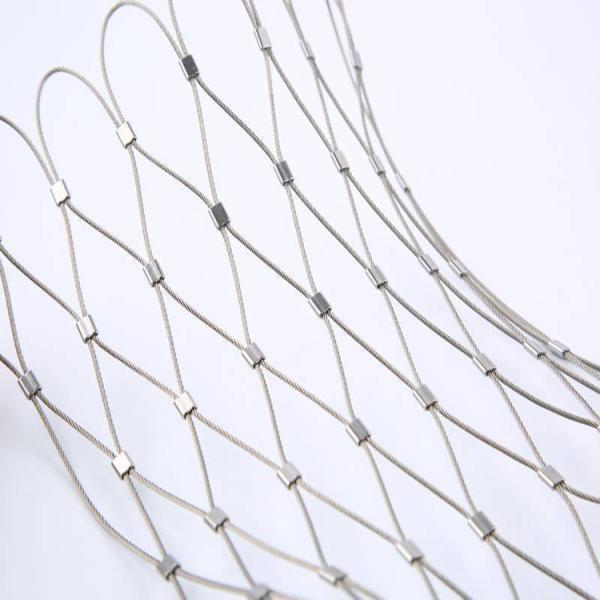

1mx30m 316 316L Stainless Steel Wire Rope Mesh Images
|
